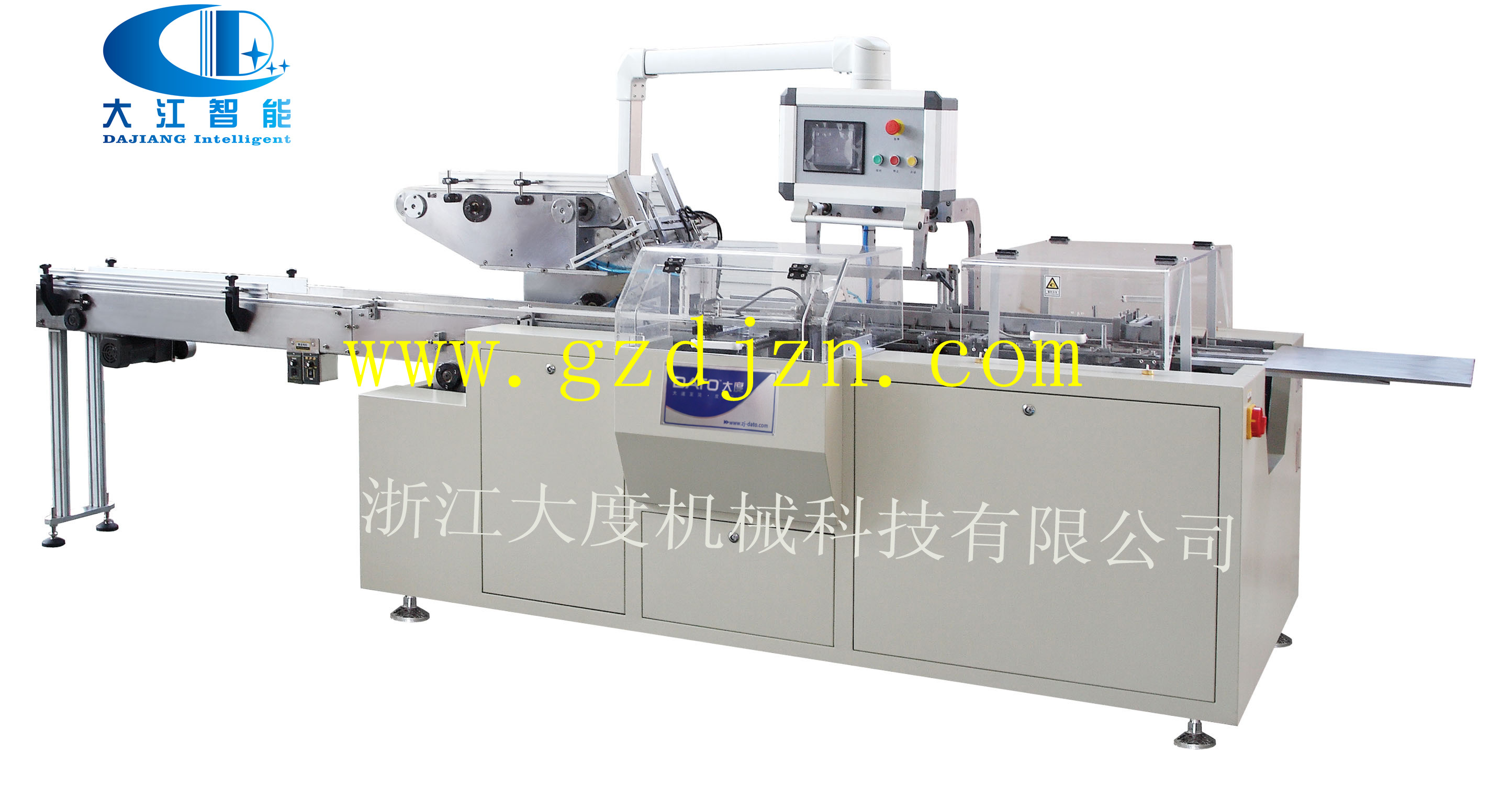

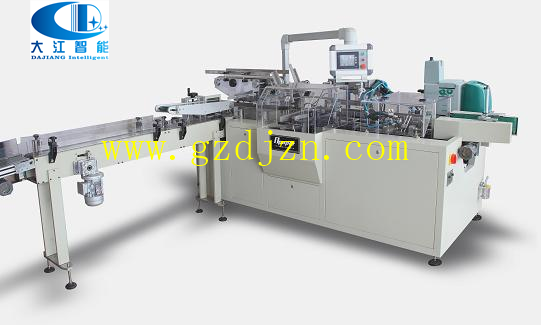

OPH-100 纸巾自动装盒机

  • 标签:
  • 纸巾自动装盒机
  • 纸巾自动装盒机价格
  • 纸巾自动装盒机厂家

OPH-100纸巾自动装盒机适用于面巾纸、餐巾纸、方巾纸、手帕纸、棉柔巾等的自动入盒封盒包装。

订购热线:

18929527355

在线咨询
产品详情

PH-100B型全自动面巾纸入盒封盒机

           automatic facial tissue boxing and sealing machines


注:本机已在维达纸业”、“唯尔福纸业”、“NUQUL GROUP”、“恒联美林”、“江门雅枫纸业”“金红叶”等著名生活用纸企业使用,并获好评

本机五大创新:

     1、产能高,稳定速度可达80盒/分钟;

     2、功能齐,半盖/全盖,纸高盒低/纸低盒高均可;

     3、换产快,更换规格仅需10-20分钟;

     4、操作便,伺服送纸、PLC控制系统易掌握;

     5、成本低,采用进口胶机0.3mm-0.36mm喷嘴胶量少。

Five innovations of the machine

1High output. The stable speed can reach 80 boxes/minute.

2Complete functions. The machine is suitable for various applications such as semi-cover/full-cover, or high paper and low box/low paper and high box.

3Rapid production changing. It only takes 10-20 minutes to change the specifications.

4Convenient operation. It is easy to control the servo paper feeding and PLC control system.

5Low cost. The imported glue machine with a nozzle of 0.3mm is adopted and the glue-spread is little.



适用范围:

适用于面巾纸、餐巾纸、方巾纸、手帕纸、棉柔巾等的自动入盒封盒包装。

Application range:

It is suitable for automatic boxing of facial tissues, square tissues, pocket tissues,cotton tissues etc.

主要性能结构特点:

1、 采用自动送料、开盒、入盒、打批号(选配)、喷胶、封盒等的包装形式,结构紧凑合理,操作调整简单;

2、 采用伺服电机和触摸屏、PLC可编程控制系统,人机界面显示操作更清晰简便,自动化程度高,更具人性化;

3、 采用自动理料输送机构,方便与自动生产线联动生产,可大量降低劳动力成本;

4、 采用光电眼自动检测跟踪系统,空包不下盒,最大限度地节约了包装材料;

5、 包装范围大,调节方便,各种规格尺寸之间可实现快速转换;

6、 更换规格无需大量更换模具,只需调节或更换个别部件即可实现;

7、 采用物品进盒不到位自动停机和主传动电机过载保护装置,适用更安全可靠;

8、 可根据客户要求,采用上翻式安全防护罩,操作简便,外形美观。

Main performances and structure features:

1. Packing forms such as automatic feeding, box opening, boxing, batch No. printing, glue spreading, box sealing, etc. are adopted. Featured by compact and reasonable structure, simple operation and adjustment.

2. Servo/step motor, touch screen, PLC control system and man-machine interface display make operation more clear and convenient. With high automation degree, the machine is more user-friendly.

3. The automatic material arranging and conveying mechanism is adopted to facilitate linked production with automatic production line, which can greatly reduce labor cost.

4. The photoelectric eye automatic detection tracking system is adopted. No boxing is made if the bag is empty, so as to save packing materials to the utmost extent.

5. With wide packing range and convenient adjustment, fast switching among various specifications and sizes can be realized.

6. Change of specifications does not need change of molds, but can be realized through adjustment.

7. Automatic stopping is available when the material boxing is not in place, and the main driving motor overload protection device is used, so that the machine is safer and more reliable.

8. According to customer requirements, the upturning type safety protective cover is adopted, which is featured by simple operation and beautiful appearance.

性能技术参数(Performance technical parameters):

项目/型号Item/model

OPH-100B/

纸质要求Paper quality of carton

300-400g/m3

最大包装规格Maximum packing specification

L240mm×W120mm×H90mm

包装速度Packing speed

30-80/分钟(boxes/minute

热熔胶机功率Hot melt machine power

2.32KW

电机功率Motor power

2.74KW

总功率Total power

5.1KW

电源类型Power supply type

三相四线(3phase 4wire380V 50Hz

机器噪音Machine noise

80dB

气源Air supply

0.5-0.8 Mpa

耗气量Air consumption

120-160L/min

外形尺寸Outline dimensions

主机Main machine

L3250×W1650×H1800mm

输送机构Conveying mechanism

L4000×W660×H1200mm

整机重量Machine weight

1500Kg

注:本公司产品更新换代较快,若有变动请按实物为准,恕不另行通知!
