DJ-50 立式多功能装盒机
产品详情

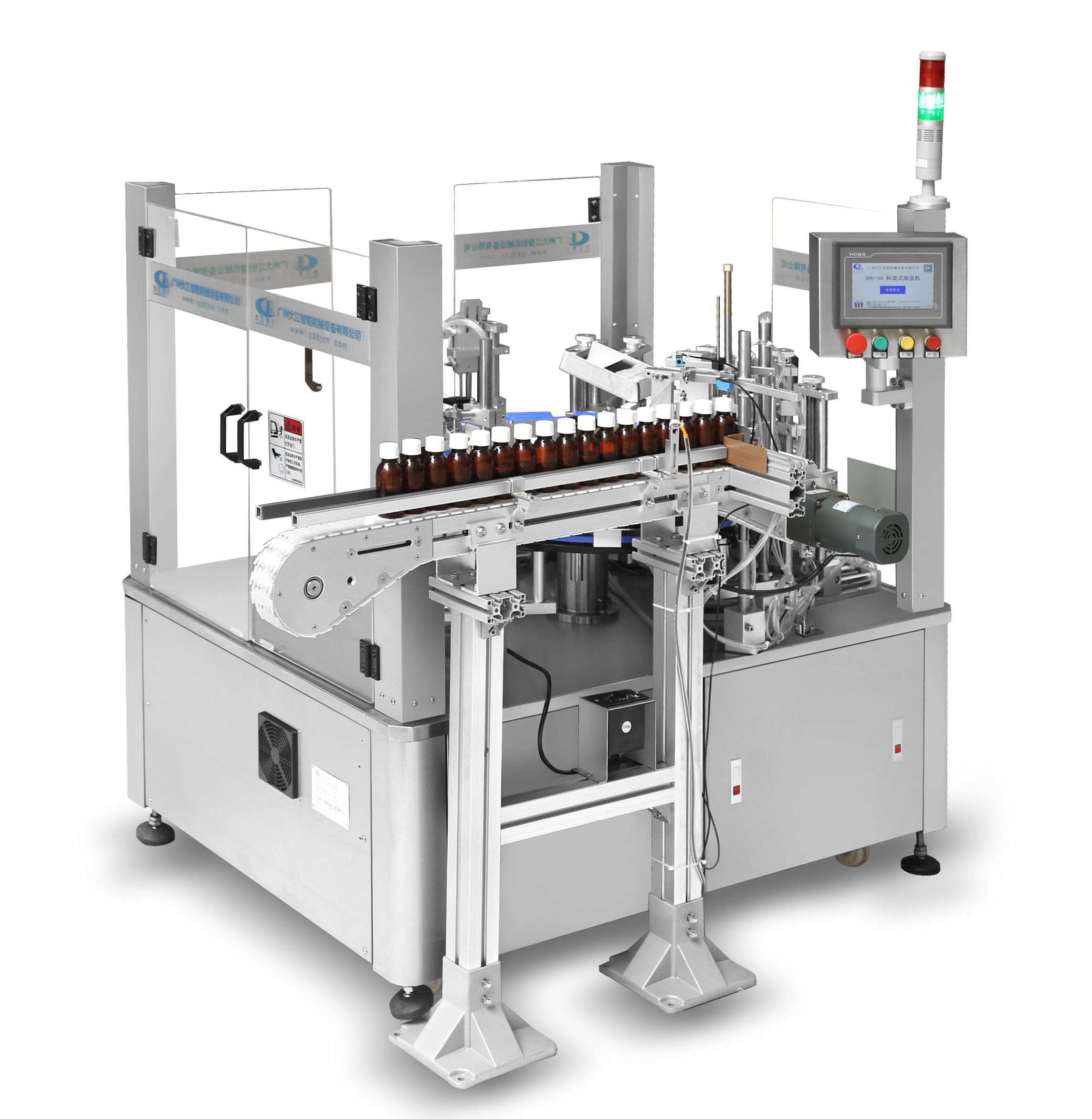

DJ-50多功能立式装盒机 DJ-50 multifunctional vertical box filling machine
适应:制药行业,食品行业,化妆品行业,电子行业纸盒立式自动成型包装。 APPLICATION : Round bottled medicine, food-stuff, cosmetic, etc. packing into square box. 特点: 该机专为包装纸盒尺寸多批量小的厂家独立设计。² 成本低,占地面积小。适用于各种尺寸的盒子。该机是一种具有多功能的垂直型自动装盒机,更换规格改变模具时间短。² 304不锈钢外壳 先进的PLC控制系统结合5.7彩色触摸屏控制面板,可以轻松地设置和改变包装参数。² FEATURES: 1.It is specially design to pack small quantities multi size box. 2.With low cost and only require small area. It is suitable for various sizes of box. The machine is a vertical type with multiple function and require a short time to change mould. 3.304 stainless steel case. 4.Advanced PLC Control System Combined with 5.7” Colorful Touch Screen Control Panel , can easily set and change the packing parameters. 选配功能: 自动加说明书,热熔胶喷胶封盒,碳带日期批号打印 OPTION : l.Leaflet Inserting , Hot Glue, Hot Ribbon Date Code , Embossed date Code 包装工序: Packing Process: 1、把纸盒吸到星轮。 Push box into star wheel. 2、折叠纸盒下小舌。 Fold box lower small flap. 3、折下盖。 Press both lower big flaps. 4、插入下大舌 Flatten both big flaps. 5产品装入纸盒。 Product fall into box. 6折叠纸盒上小舌。 Fold box upper small flap. 7折上盖。 Press both upper big flaps. 8插入上大舌 Flatten both big flaps. 9成型产品推出。 Product push out.
注:本公司产品更新换代较快,若有变动请按实物为准,恕不另行通知! 广州大江智能机械设备有限公司(http://www.gzdjzn.com)专业生产各种转盘式装盒机,高速装盒机,立式装盒机,连续式装盒机,卧式装盒机,间隙式装盒机,半自动装盒机,圆盘式装盒机,上开盖装盒机,小型装盒机,简易式装盒机,气缸式装盒机,药板装盒机、口服液装盒机、安瓶装盒机、西林瓶玻璃瓶装盒机、袋装颗粒装盒机、贴膏装盒机、软膏装盒机、气雾剂装盒机,软管装盒机。
