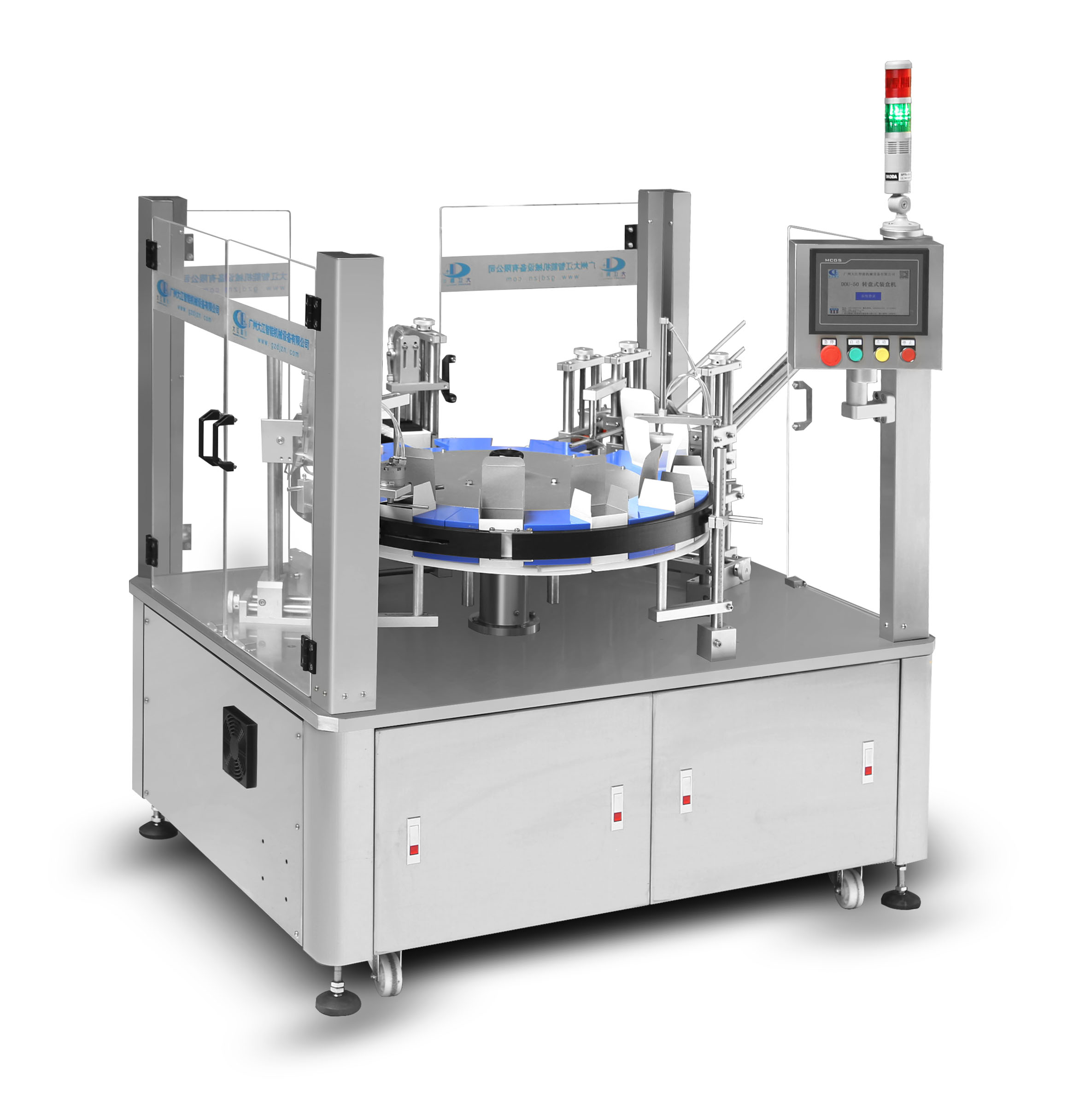

DJ-50D多功能立式装盒机

DJ-50D multifunctional vertical box filling machine

适应：汽车灯泡，LED球泡灯，开关插座，滤清器，散装小零食，502胶水，无托口服液，有内衬化妆品，制药行业，食品行业，化妆品行业，电子行业纸盒立式自动成型包装。

APPLICATION :

Round bottled medicine, food-stuff, cosmetic, etc. packing into square box.

特点：

l 该机专为包装纸盒尺寸多批量小的厂家独立设计。²

l 成本低，占地面积小。适用于各种尺寸的盒子。该机是一种具有多功能的垂直型自动装盒机，更换规格换模具时间短。²

l 采用304不锈钢外壳

l 先进的PLC控制系统结合彩色触摸屏控制面板，可以轻松地设置和改变包装参数。²

FEATURES:

² It is specially design to pack small quantities multi size box.

² With low cost and only require small area. It is suitable for various sizes of box. The machine is a vertical type with multiple function and require a short time to change mould.

² 304 stainless steel case

² Advanced PLC Control System Combined with Colorful Touch Screen Control Panel , can easily set and change the packing parameters.

选配功能：

自动加说明书，热熔胶喷胶封盒，日期批号打印，各种整理下料

OPTION :

l Leaflet Inserting , Hot Glue, Hot Ribbon Date Code , Embossed date Code

包装工序：

Packing Process:

1、把纸盒吸到星轮。

Push box into star wheel.

2、折叠纸盒下小舌。

Fold box lower small flap.

3、折下盖。

Press both lower big flaps.

4、插入下大舌

Flatten both big flaps.

5产品装入纸盒（可人工，也可连线设计自动加料机械手）。

Product fall into box.

6折叠纸盒上小舌。

Fold box upper small flap.

7折上盖。

Press both upper big flaps.

8插入上大舌

Flatten both big flaps.

9成型产品推出。

Product push out.

主要性能技术参数：

SPECIFICATION :

项目/型号Model No.	DJ-50/DJ-50D
包装速度Production speed:	20-50盒/分钟box per min
纸盒尺寸范围Paper box size range	DJ-50:L(20-70)mm×W(20-70)mm×H(45-280)mmDJ-50D:L(20-120)mm×W(20-120)mm×H(45-280)mm
纸盒纸质要求Paper quality of carton	250-350g/m3
电机功率Motor horsepower	1/4HP 15:11.5KW/H
电源类型Power supply	单相220V 50/60HZ single phase
机器噪音Machine noise	≤80dB
气源Gas source	0.5-0.8 Mpa
耗气量Compress air consumption	260L/min
外形尺寸Machine measurement:	L 1100 x W 1500 x H 1700 mm
整机重量Machine weight	450Kg

注：本公司产品更新换代较快，若有变动请按实物为准，恕不另行通知！

Note: the company's products are updated quickly. In case of any change, please refer to the real object without further notice!
